Monday, October 25, 2010

Unit Testing – MsBuild Series

This post is going to walk through the steps of adding unit testing to our build script. This post is assuming that you already have a MsBuild script setup that you can run from the command line. Otherwise you might want to look at my previous post on setting up a build file for Visual Studio:

1) Change the output path for Test projects

The first thing to do is to change the output path for the test project (or projects). We do this so that the testing binaries to are separated from the release binaries. Below is a screen shot of the directory being changed inside visual studio.

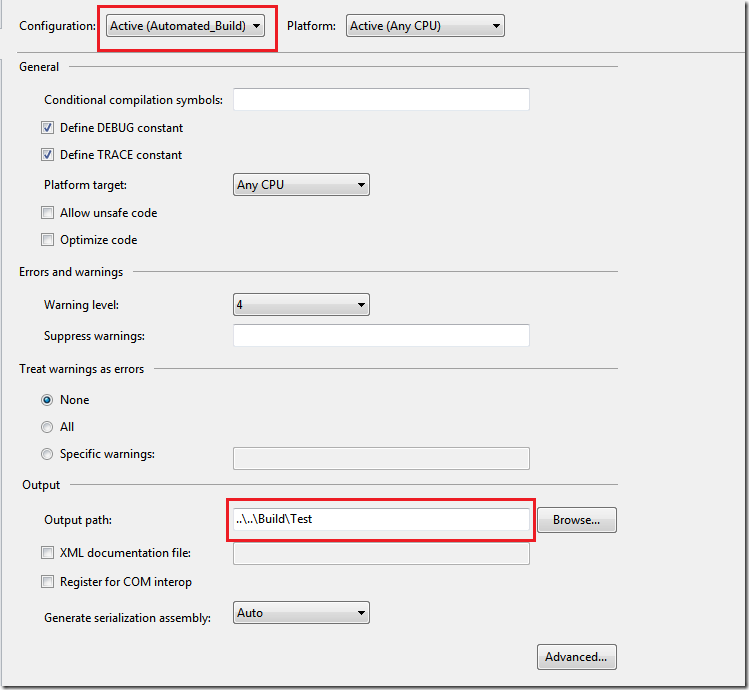

Change output Directory For Test Projects

Things to note:

2) NUnit Target

For running our tests I am going to use the “MsBuld.Community.Tasks” NUnit Task. We have been using other Tasks from the “MsBuld.Community.Tasks” so we already have the targets and dll that are needed for these tasks (see this post for details on getting the Community Tasks setup).

So, now we just define our NUnit target as follows:
<Target Name="NUnit">
        <TestAssembly Include="$(BuildOutputDir)\Test\*.test.dll" />
    <Message Text="NUnit is running on: @(TestAssembly)" />
    <Nunit ToolPath=".\Tools\NUnit" Assemblies="@(TestAssembly)" />

<Target Name="Test" DependsOnTargets="NUnit">
    <Message Text="Testing code" />

Things to note:
  • I have created two targets “Test” & “NUnit” which is not necessary if your only using NUnit. However, I did this so that it's easy to add other targets for different testing frameworks such as MbUnit, xUnit, Mspec etc. (if you using multiple test frameworks make sure you checkout gallio)
  • The TestAssembly ItemGroup will grab any assembly that ends with Test.
  • The nunit console runner and lib directory have been copied to "[Project Dir]\Tools\NUnit"

The necessary nunit binaries have been copied into “[Project Root]\Tools\Nunit”. Normally I just copy “nunit-console.exe” , “nunit-console.exe.config” and the entire Lib directory.

3) Incorporate the Test target into the main build file

We now have the Test target so we all we need to do is have our default build target depend on our Test target, as follows:
<Target Name="Build" DependsOnTargets="Clean; VersionSolutionInfo; Compile; Test; Zip-Source; Zip-Binaries; NuPack">
<Message Text="Clean, VersionSolutionInfo, Compile, Test, Zip-Source, Zip-Binaries, NuPack"/>
Now when we run our build the code is tested before creating our zips or NuPack (or should I say Nuget).

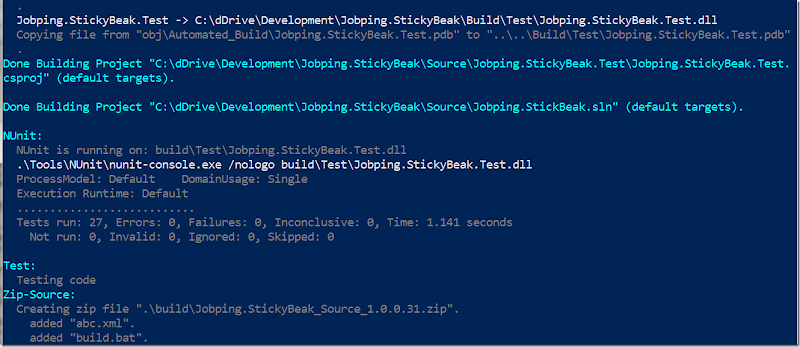

Testing Code

NB: Please check the reference files for full copies of the build targets used in this series so far


This is the fifth post in the MsBuild series.

Shout it kick it on DotNetKicks.com

Thursday, October 21, 2010

Creating a NuPack package using a Build File - MsBuild Series

This post is going to walk through the steps of creating a NuPack package as part of an automated build file.
Previously we have created an automated build file to clean, version, compile, zip-binaries and zip-source code.
If you’re now familiar with creating build files then you may want to catch up by reading these:

1) NuPack Package Preparation

Before we start we need to get a few things in place.
  1. We need the NuPack.exe utility
  2. We need a directory to keep our NuPack stuff.
  3. We need a NuPack manifest file
(NB: The best way to learn how to build nuspec packages (at the moment) is to look through the examples by downloading the codeplex repository here: http://nupackpackages.codeplex.com/SourceControl/list/changesets)

Firstly we need to add the NuPack.exe utility to our tools directory. The NuPack.exe will be used to create our NuPack package. You can download this file from: http://nupack.codeplex.com/releases/view/52016
After downloading the following path should be valid:
  • [project root]\tools\nupack\nupack.exe
Next, we will create a directory for holding the input files for the NuPack package. Create the following directory:
  • [project root]\NuPack\
Inside this directory create a [projectName].nuspec file, for example:
  • [project root]\NuPack\StickyBeak.nuspec
This file needs to conform to the nuspec file format found here: http://nupack.codeplex.com/documentation?title=Nuspec%20Format
Below is a sample for the StickyBeak project:
<?xml version="1.0" encoding="utf-8"?>
            <author>Mark Kemper</author>
        <description>StickyBeak is a logging utility for asp.net websites which can log every request to your site. It provides similar features as IIS log files but provides additional logging information (which just isn’t possible with IIS logs) and easy viewing of logs via a admin page</description>
Notice for now that we have hard coded the version number, later as part of the build we will replace this version number with the real version number.

Next I needed to copy some static files under the NuPack Directory. For StickyBeak I created the follow static content transforms
  • [Project Root]\NuPack\Content\NLog.config.transform”
  • [Project Root]\NuPack\Content\Web.Config.transform”
Any files you place in the Content directory will be copied to the target directory when someone installs your package.

Once you have your NuPack directory setup just how you want it, its time to build the package using a build target.

2) NuPack Target

For building the NuPack package I followed these basic steps it the build
  1. Copy everything from our “[Project Root]\NuPack” directory into “[Project Root]\Build\NuPack” . This sets up the static content required for the NuPack package.
  2. Copy the freshly built binaries from our output directory into “[Project Root]\Build\NuPack\Lib” – these files will become references when someone installs our package.
  3. Update the version number inside the Package specification file using a FileUpdate (regex) task
  4. Use a exec task to call the NuPack.exe executable and perform the packaging. NB: I set the working directory so the package will be created in the correct location.
The NuPack target is quite involved at the moment but hopefully dedicated task is created by Microsoft to help make this a little easier in the future.

The full target is shown below:
<Target Name="NuPack">
        <NuPackFiles Include="$(NuPackDestSource)\**" />
     <NuPackLibFiles Include="$(BuildOutputDir)\Bin\**" />
     <NuPackPackageFile Include="StickyBeak*nupkg" />

    <Message Text="Setting up the $(NuPackDestDir) directory will all the necessary files to create our package"/>
    <Copy SourceFiles="@(NuPackFiles)"  DestinationFiles="@(NuPackFiles->'$(NuPackDestDir)\%(RecursiveDir)%(Filename)%(Extension)')" />
    <Copy SourceFiles="@(NuPackLibFiles)"  DestinationFiles="@(NuPackLibFiles->'$(NuPackDestDir)\Lib\%(RecursiveDir)%(Filename)%(Extension)')" />

    <FileUpdate Files="$(NuPackDestDir)\StickyBeak.nuspec"
   ReplacementText="version>$(Major).$(Minor).$(Build).$(Revision)</version" />

    <Message Text="Executing the NuPack.exe packager"/>
    <Exec WorkingDirectory="$(BuildOutputDir)" Command="..\Tools\NuPack\NuPack.exe ..\$(NuPackDestDir)\StickyBeak.nuspec"/>

3) Update Our Default Build

Now we can update default build task to create our NuSpec package after each successful build.
<Target Name="Build" DependsOnTargets="Clean; VersionSolutionInfo; Compile; Zip-Source; Zip-Binaries; NuPack">
<Message Text="Clean, VersionSolutionInfo, Compile, Zip-Source, Zip-Binaries,
That's it. We can now prepare our NuSpec package a the click of a button. The results of our build directory now look like this:


This is the forth post in the MsBuild series.

Shout it kick it on DotNetKicks.com

Wednesday, October 20, 2010

Zipping Build Outputs using a Build File - MsBuld Series

We are continuing ths msbuild series, this post will focus on zipping the outputs of the build. To recap so far we have setup a batch file that can build and version our project. The output of this build is placed inside a folder called "build" at the top of projects directory structure.

We will zip up the outputs of the build so they can be easily distributed. To do this, the Zip build task that is part of the “MsBuld.Community.Tasks” library will be used. If you are not familiar with this library and how to setup then please read through my two previous posts to get up to speed.
We are going to create two zip files during our build:
  1. A zip of all binaries needed to run the application
  2. A zip of all source code needed to compile the application.
We are zipping up the source so we can provide an easy download of the source code for our application via codeplex, github etc. Similarly we can provide just a zip of the binaries for a specific version of our application.

1) Change the output directory to “build\bin”

Firstly we are going to change our build output directory inside visual studio so that the binaries are placed into a new folder called bin under the build directory “[project]\Build\Bin”. Having a sub directory removes the clutter from the root of our build directory so we can place our zip files there.

Below is the screen shot of the new location being set inside visual studio for our automated_build configuration.

Changing the output directory

2) Creating the Zip-Binaries target

We have already included the “MSBuild.Community.Tasks” targets in our build file, so only thing we need to do before using the zip task is to ensure that we have copied the ICSharpCode.SharpZipLib.dll binary into our “Tools\MsBuildCommunityTasks” directory. This binary is included in the MsBuildCommunityTasks download.

Now declare the Zip-Binaries target as follows
<Target Name="Zip-Binaries">
<BinDirectoryFiles Include="$(BuildOutputDir)\bin\**" />
<Zip Files="@(BinDirectoryFiles)" WorkingDirectory="$(BuildOutputDir)\bin\"
ZipFileName=".\$(BuildOutputDir)\Jobping.StickyBeak_Binaries_$(Major).$(Minor).$(Build).$(Revision).zip" />
Notes on the Zip-Binaries target
  • BinDirectoryFiles – this variable references all files below the "build\bin” directory. These are the files that we will zip.
  • The WorkingDirectory attribute for the zip task specifies the root directory for the zip file. We speicify the “build\bin” directory as the root for our zip
  • We use the version information to name the resultant zip file.

2) Creating the Zip-Source target

Apart from the binaries we also want to distribute the source code. So, we are going to declare a Zip-Source target for our build file as follows:
<Target Name="Zip-Source">
<SourceFilesExclude Include="**\.hg\**" />
<SourceFilesExclude Include="build**" />
<SourceFilesExclude Include="**\.*" />
<SourceFilesExclude Include="**\bin\**" />
<SourceFilesExclude Include="**\obj\**" />
<SourceFilesExclude Include="**\Test\**" />
<SourceFilesExclude Include="**\TestResults\**" />
<SourceFilesExclude Include="**\*.user" />
<SourceFilesExclude Include="**\*.suo" />
<SourceFilesExclude Include="**\*.cache" />
<SourceFilesExclude Include="**\*.vsmdi" />
<SourceFilesExclude Include="**\*.testsettings" />
<SourceFiles Include="**\*.*" Exclude="@(SourceFilesExclude)" />
<Zip Files="@(SourceFiles)"
ZipFileName=".\$(BuildOutputDir)\Jobping.StickyBeak_Source_$(Major).$(Minor).$(Build).$(Revision).zip" />
Notes on the Zip-Source target
  • We generally want to zip up everything, so we include all files by using the wildcard “**\*.*” which means all files in all directories.
  • We specify a list of excludsions, these are source control files and other files that are generated or not necessary in order to build our application.
  • Getting the exclude list correct requires some testing, you should test your source zip by extracting it and making sure you can compile the solution.

3) Incorporating the Zip tasks into our default build

Since we can now created the two zip targets all we need to do is have our default build target depend on these targets, as follows:
<Target Name="Build" DependsOnTargets="Clean; VersionSolutionInfo; Compile; Zip-Source; Zip-Binaries">
<Message Text="Clean, VersionSolutionInfo, Compile, Zip-Source, Zip-Binaries"/>
That’s it. Below is a screen shot of the kicking off a build and the resultant output in the build directory.

Build output

Screen shot of our ready to ship zips:

Build output directory

This is the third post in the MsBuild series.

Shout it kick it on DotNetKicks.com

Tuesday, October 19, 2010

Mercurial Revision No to Version your AssemblyInfo - MsBuild Series

By now you already have a build file setup and running, if not please see my previous post.

This post is going to focus on getting our version number automatically updated during the build process. We are going to use the AssemblyInfo task from the “MSBuild.Community.Tasks” library and the HgVersion task from the “MSBuild.Mercurial library.

The HgVersion task will get the revision number from our Mercurial source control repository so we can include it in our assemblyInfo file.

The AssemblyInfo task will create our AssemblyInfo file before the compile task is executed.

If you are using TFS or Subversion you will need to substitute the Mercurial task for the equivalent task for these version control systems. The MsBuild.Community.Tasks contains a TFS and Subversion Version tasks for this purpose.

1) Getting the revision number from Mercurial.

Firstly download and copy the MSBuild.Mercurial from http://msbuildhg.codeplex.com/releases/view/47779 and copy the following two files below to “[Project Root]\Tools\MSBuild.Mercurial” diretory:
  • MSBuild.Mercurial.dll
  • MSBuild.Mercurial.tasks
With these files in place we can now use the HgVersion Task to retrieve the version number from Hg and store it into a property.
<Import Project="Tools\MSBuild.Mercurial\MSBuild.Mercurial.Tasks" />
<Target Name="Hg-Revision">
    <HgVersion LocalPath="$(MSBuildProjectDirectory)" Timeout="5000">
        <Output TaskParameter="Revision" PropertyName="Revision" />
    <Message Text="Last revision from HG: $(Revision)"/>
Firstly we set “MsBuildMercurialPath” to the current directory. Then we import the Mercurial Tasks from our Tools directory.

Next we define a new target called “Hg-Revision” which calls the HgVersion task. The HgVersion task will set the revision number from the repository in the "LocalPath" to a property called “Revision”.

Lets test it out by running: build /t:hg-revision

Output from hg-revision task

2) Creating our Assembly Info File

Now we are going to create a task to automatically generate an assembly info file.

We need the MSBuild.Community.Tasks library from here: http://msbuildtasks.tigris.org/

Again I will copy the necessary files under the tools folder.
  • Tools\MSBuildCommunityTasks\MSBuild.Community.Tasks
  • Tools\MSBuildCommunityTasks\MSBuild.Community.Tasks.dll
(NB: Copying these assemblies under tools folder makes the solution much easier to setup on other developer machines and build servers.)
<!-- Create an Assembly Info File -->

<Import Project=".\Tools\MSBuildCommunityTasks\MSBuild.Community.Tasks.Targets" />

<Target Name="SolutionInfo">
    <Message Text="Creating Version File: $(Major).$(Minor).$(Build).$(Revision)"/>
        AssemblyDescription="StickyBeak logs requests to your website"
        AssemblyCopyright="Copyright © whohive"
Once this is in place we can now generate our AssemblyInfo.cs file. I have called the output filename SolutionInfo.cs as I like to use the same file for each project in the solution (I’ll show you how to do this soon).

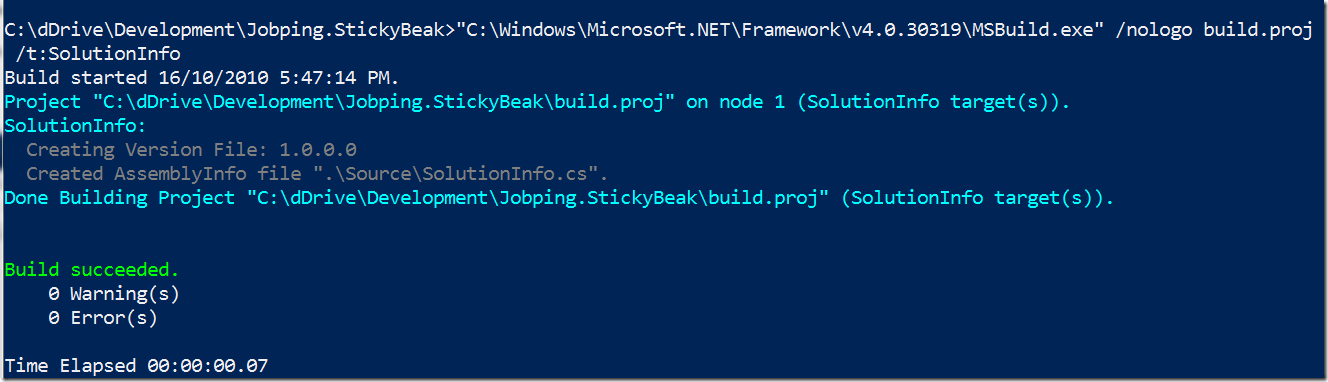

Let's test this by running: build /t:solutionInfo

Output from SolutionInfo

As you can see we are using the hard-coded version number of for the moment.

Now lets hook our SolutionInfo.cs file into our visual studio project and have it included in the build.
  1. Firstly go through your project and delete any existing AssemblyInfo files you may have under the “Properties” folder.
  2. For each project in your solution right click and select “Add Existing Item” from the context menu.
  3. Navigate to the SolutionInfo.cs file generated and add as a link. (See below on how to add as a link)
Add SolutionInfo as a link

3) Combining the Hg-Revision and SolutionInfo Tasks

So far our SolutionInfo task only uses a hard-coded revision number of  "0". What we really want is to have this revision number linked to the source control revision number. This is really easy to achieve as follows.
<Target Name="VersionSolutionInfo" DependsOnTargets="Hg-Revision;SolutionInfo">
    <Message Text="Get Revision, Generate SolutionInfo"/>
So we have just combined the two items into a new task called VersionSolutionInfo. This task depends on the Hg-Revision and SolutionInfo tasks, so it will first call Hg-Revision to get the lastest revision number into our Revision property then when SolutionInfo is called it will use this revision number.

Lets execute it as follows: build /t:VersionSolutionInfo

Output from VersionSolutionInfo

As you can see, the revision number 10 is retrieved from mercurial and then the solutionInfo is generated. If you inspect the SolutionInfo.cs file you will find that the version number is now

The final step is to change our default build task to depend on VersionSolutionInfo so we can have everything done in 1 step.
<Target Name="Build" DependsOnTargets="Clean;VersionSolutionInfo,Compile">
    <Message Text="Clean, VersionSolutionInfo, Compile"/>
NB: you can have any number of files containing the assembly meta data such as company, version etc. For example we could split it as follows:
  • SolutionInfo.cs – contains static information and is checked into source control
  • SolutionInfo.geneated.cs – just contains version information (not checked in)
You can organise it anyway you like.

Update: You need to TAG your repository with the full version number so you can relate the release's version no to a changeset across all repositories. I'll post a build target to do the tag automatically at some point. Thanks to @jdhard for bringing this up.

Below I have provided two sample MsBuild files. Firstly we have our main build file that handles : clean & compile from the first post it this series. The second file contains the targets used in this post. I have split out the items so it's easy to isolate the Tasks for this post.

This is the second post in the MsBuild series.

Shout it kick it on DotNetKicks.com

Sunday, October 17, 2010

Create a Build File for a Visual Studio Solution - MsBuild Series

Why create a build file for a Visual Studio
A build file automates the process of building, testing, analyzing, packaging, & deploying your project. Build files can be used to give you a single click solution to perform mundane tasks in a consistent way.
It saves you time by automating all the tedious steps necessary to prepare your project for testing or deploying. It reduces risk because you can confidently repeat the process, there's no change you will forgot to rename a file or change to release mode etc etc.

OK but How?
Creating a build file for the first time can be a little tricky so I have prepared a quick tutorial on creating a simple msbuild file for compiling your solution. Just follow the steps below and let me know if you have any issues.

1) Folder Structure

Once we start running builds of our project we need a place to store the results. We may also need extra tools for our build process and of course we need a place for our new build file.

Below is a the folder structure I will be using for this introduction. It allows us to keep all of the build files / folders out of our source tree.

Project Root:/
/Build – result of the build will be placed in here
/Source – all source code (& libraries) for the project
/Tools – collection of tools used for the build process
/build.bat – simple 'double click to build' ms dos batch file
/build.proj– our build file for msbuild, this is where we define the steps for our build process

2) Creating the Batch File

Create a new blank file called build.bat in the root directory of your project. This will be a simple ms dos batch file to kick off our build script. Simple copy the contents below into the batch file.
REM dont remove this line
"%windir%\Microsoft.NET\Framework\v4.0.30319\MSBuild.exe" /nologo build.proj  %*
Make sure you leave the first line intact, otherwise you may run into problems because of the encoding used to save the file. If you have issues with encoding then you may need to open the file using a specific encoding (850) see: http://msdn.microsoft.com/en-us/library/dxfdkfke(VS.80).aspx.

The batch file simply calls msbuild.exe and passes in our build.proj file. The %* argument passes any command line arguments supplied to the batch file into the msbuild.exe command. This allows us to specify a target at the command prompt like this: build /t:clean

4) Creating the Build File

Lets start with the simplest sample possible.
<?xml version="1.0" encoding="utf-8"?>
<Project DefaultTargets="Build" xmlns="http://schemas.microsoft.com/developer/msbuild/2003">


     <Target Name="Clean">
      <RemoveDir Directories="$(BuildOutputDir)" />
     <Target Name="Build" DependsOnTargets="Clean">
      <Message Text="Clean"/>
The build file contains two targets: Clean & Build. Build is our default target so if you run build.bat without any target specified and the build target will be executed by default.

The default target is specified on the 2nd line with DefaultTargets="Build"

The Build target depends on the Clean target, so before the build target is executed the Clean target is executed. The Clean target simply deletes the output directory, giving us a clean working space to preform the build.

The output directory is defined in the ProperyGroup near the top of the file. This simply assigns the variable: BuildOutputDir to the string “build”, which is the name of our output or build directory.
5) Adding the Compile Target
To actually compile the project we need to add another target, which we are going to call Compile.

The updated proj file now looks like this:

 <Target Name="Clean">
  <RemoveDir Directories="$(BuildOutputDir)" />

 <Target Name="Compile">
  <MakeDir Directories="$(OutputDirectory)" />
  <MSBuild Projects="$(SolutionToCompile)"
     Properties="Configuration=Automated_Build;" />
 <Target Name="Build" DependsOnTargets="Clean;Compile">
  <Message Text="Clean, Compile"/>
Things to notice:
  • Extra variable for the solution to compile
  • Extra target called Compile
  • Compile target uses msbuild to compile the solution
  • Solution Configuration is set to Automated_Build
  • The Build target now depends on Compile too.
If you run this you should receive an error stating that the Automated_Build configuration does not exists. We need to create this configuration inside visual studio.

6) Creating the Configuration “Automated_Build” in VS

Open up our visual studio solution, then under the Build menu, select Configuration Manager. Create a new configuration called “Automated_Build” as show below, copy the settings from the release configuration.

Creating the Configuration inside Visual Studio

I am going to unselect SampleWeb because I do not want that project compiled as part of the automated build.

Configuration Setup - Removed Sample WEb

Now we will change the output directory for the “Jobping.StickyBeak” project under the “Automated_Build” configuration. As Show below:

With our project configuration complete we can now run our build.

Build Output

As you can see we now have our freshly compiled binaries in the build directory.

By simply adding more targets to your build file you can automate any tedious step that is needed to build and package your project.

This is just the beginning! next we will look at

Shout it kick it on DotNetKicks.com

Saturday, October 2, 2010

Jobping Url Shortener – Version 0.6

We have just checked in our latest version of the Jobping Url Shortener, version 0.6. This version resolves an important issue raised by @nato24. Nato24 asked “Have you guys implemented a solution for obscenities in your short url encoder?” . Thanks nato24 & Good question!

Our short urls are too short at the moment to create any four letter words(yet!) but it was just a matter of time before all possible 4 letter words were used.

So, in this release we have decided to remove all vowels (‘a’, ‘e’, ‘i’, ‘o’, ‘u’, ‘A’, ‘E’, ‘I’," ‘O’, ‘U’) from the possible letters used in the Url shortener. This means that our urls will grow a little faster but we were willing to sacrifice this for wordless urls.

However, we do get a major benefit also, we can now make our own short urls using words (that contain vowels). So we are free to make up short urls like http://jobp.in/example and know that the shortener will never create a clashing url because it contains a vowel (or 3).

We also added a feature that allows us to offset the urls generated. By adding this offset into the configuration we allowed our url shortener to skip over any duplicates that would have been created if we just removed the vowels from our code.

The new version is on codeplex here: http://jpurlshortener.codeplex.com/

The production site for our shortener is here: http://jobp.in/

Also be sure to visit Jobping, which is now Global and advertises positions based on Microsoft Technologies.

Shout it

StickyBeak Version 0.3 Released

Finally found some time to add a couple of features to StickyBeak.

StickyBeak is a logging utility for asp.net websites which can log every request to your site. It provides similar features as IIS log files but provides additional logging information (which just isn’t possible with IIS logs) and easy viewing of logs via a admin page. You can also use the StickyBeak log file parser in your own code.

StickyBeak records request details such as url, ip address, unique session Id,  datestamp, cookies, querystring, form values, session variables etc. StickyBeak allows you to track the requests that lead up to errors/exceptions on your site. So it provides valuable context for figuring out exactly what caused an error. StickyBeak is complimentary to elmah.

We use a modified version of StickyBeak on Jobping .

Version 0.3 is now on codeplex and includes the following additional features:

1) Logs Asp.Net Session keys and values.
Session keys and values are now recorded alongside the existing request data (cookies, querystring, posted form values, headers etc).

2) Allows StickyBeak to be temporarily turned on or off via the admin page.
StickyBeak can be Enabled via the configuration file but now you can temporary override this setting on the admin page. Therefore you can have StickyBeak turned off in the configuration file (which means no logging is taking place) then temporary turn on the logging via the admin page. If the application is restarted StickyBeak will then revert to the config setting.

Upcoming features for StickyBeak

We would love to hear any suggestions you may have for the next version so please send them through. Currently we are planning to include features such as:

Database integration - which will allow log files to be consolidated from multiple sources into a rational db for analysis.

Viewstate (logging/decoding) – allow Viewstate to be logged and decoded (we are using mvc :)

You can read more about StickyBeak here: http://markkemper1.blogspot.com/2010/06/introduction-to-stickybeak.html

StickyBeak is hosted on Codeplex: http://stickybeak.codeplex.com/

Shout it
kick it on DotNetKicks.com

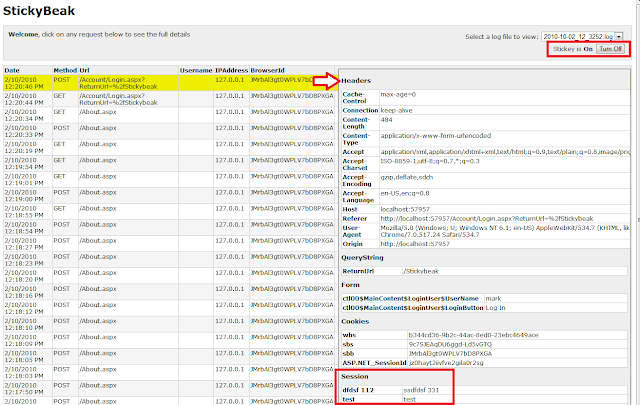

StickyBeak in action below. New features highlighted with red squares.
